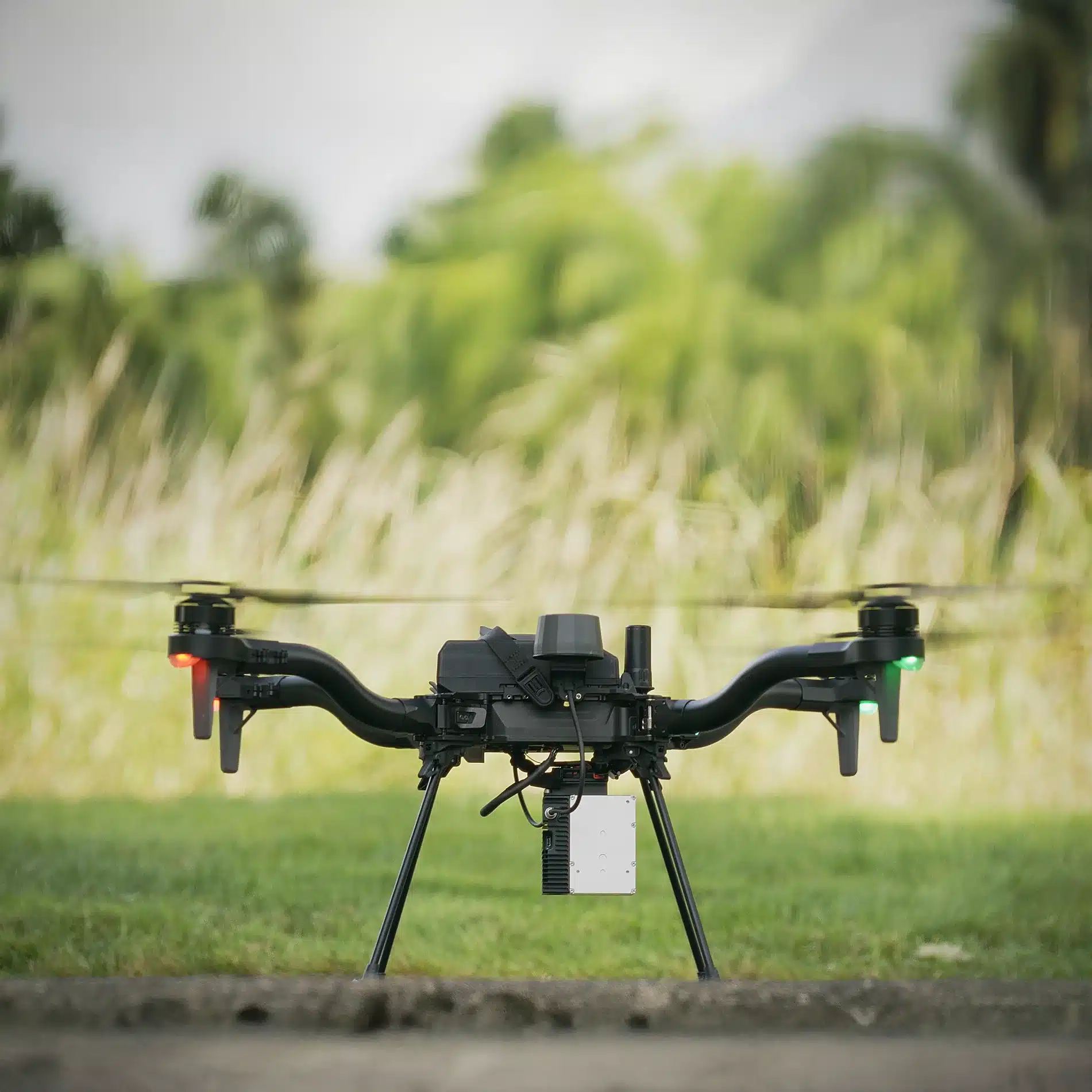

Flux L1

The Flux L1 makes professional LiDAR mapping more accessible without compromising on capability.

Powered by the Livox Avia scanner, the L1 offers long-range coverage and non-repetitive scanning patterns ideal for power line inspection, forestry, and hard-to-map assets.

Affordable, reliable, and lightweight, it’s the entry point to high-value 3D capture.

Features

• No software subscription/maintenance cost
• ±5 cm accuracy, 2 cm precision
• Extended 450 m range with 70° × 77° field of view
• Non-repetitive scanning for complete coverage of complex structures
• Compact 715g payload optimized for long flights
• GNSS Post-Processing (PPK)
• Export to LAS or LAZ

Includes:

• Qty 1 – Travel Case
  • Qty 1 – Flux L1 Lidar Scanner
  • Qty 2 – High-performance GPS antenna with quick release mounts
  • Qty 1 – USB C – Ethernet adapter (for iPad)
  • Qty 1 – USB-C Drive (64GB)

Not included, but required for operation

• M-Series iPad (Apple Silicon) for output processing. The newer it is, the faster the processing. M3 iPad in our testing is processing 4x real time (8 minute flight takes ~2 minute to process)
• GNSS Base Station (L1, L2, L5, L6) or equivalent NTRIP
