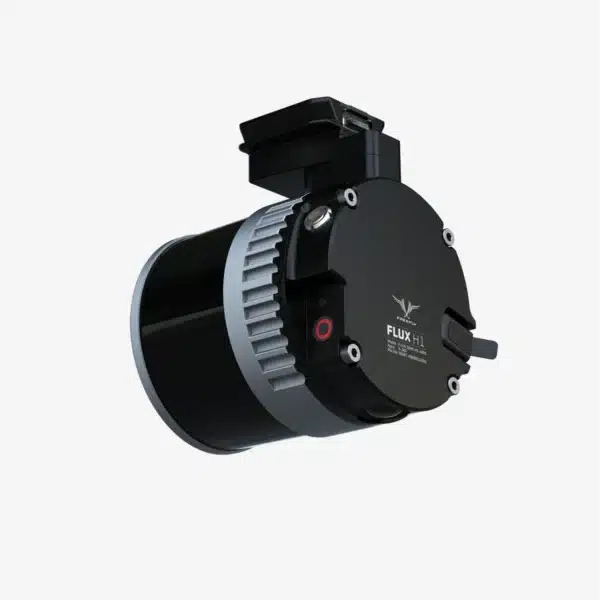

Flux H1

The Flux H1 delivers professional-grade LiDAR in a lightweight sub-700 g package, built for operators who need accuracy they can trust anywhere in the world.

Featuring the Hesai XT-32MX scanner and a 20 MP RGB camera, the H1 captures dense, high-fidelity data with centimeter-level precision.

Designed for global travel and all-day missions, it’s the perfect solution when accuracy, portability, and reliability are non-negotiable.

Features

• ±1 cm accuracy and 0.5 cm precision for survey-grade results
• 300 m range with 360° × 40° field of view
• Compact, lightweight (715g) design for maximum flight endurance
• 1.9M points per second for detailed point clouds
• GNSS Post-Processing (PPK)
• Export to LAS or LAZ
• No software subscription/maintenance cost

Includes

• Qty 1 – Travel Case
  • Qty 1 – Flux H1 Lidar Scanner
  • Qty 2 – High-performance GPS antenna with quick release mounts
  • Qty 1 – USB C – Ethernet adapter (for iPad)
  • Qty 1 – USB-C Drive (64GB)

Not included, but required for operation

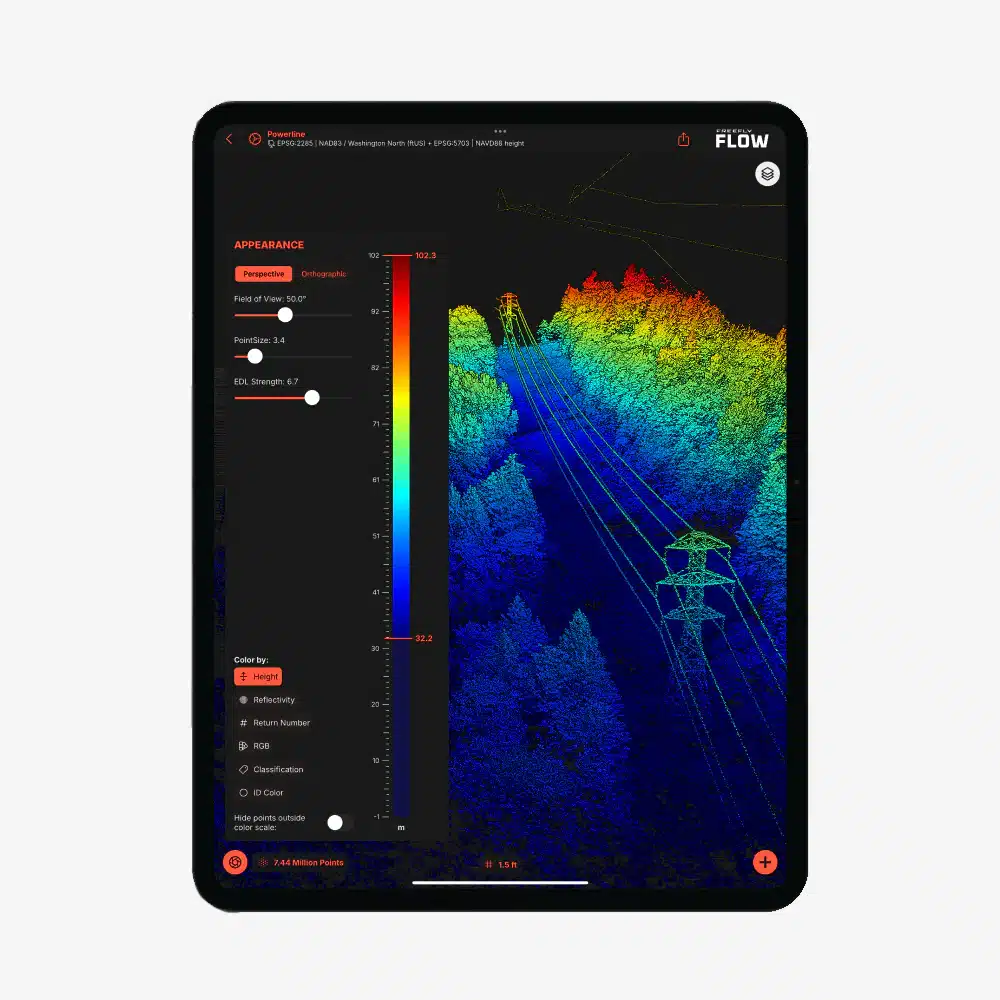

• M-Series iPad (Apple Silicon) for output processing. The newer it is, the faster the processing. M3 iPad in our testing is processing 4x real time (8 minute flight takes ~2 minute to process)
• GNSS Base Station (L1, L2, L5, L6) or equivalent NTRIP
