Wingtra Oblique Sony Alpha a6100 Camera Payload Kit

Description

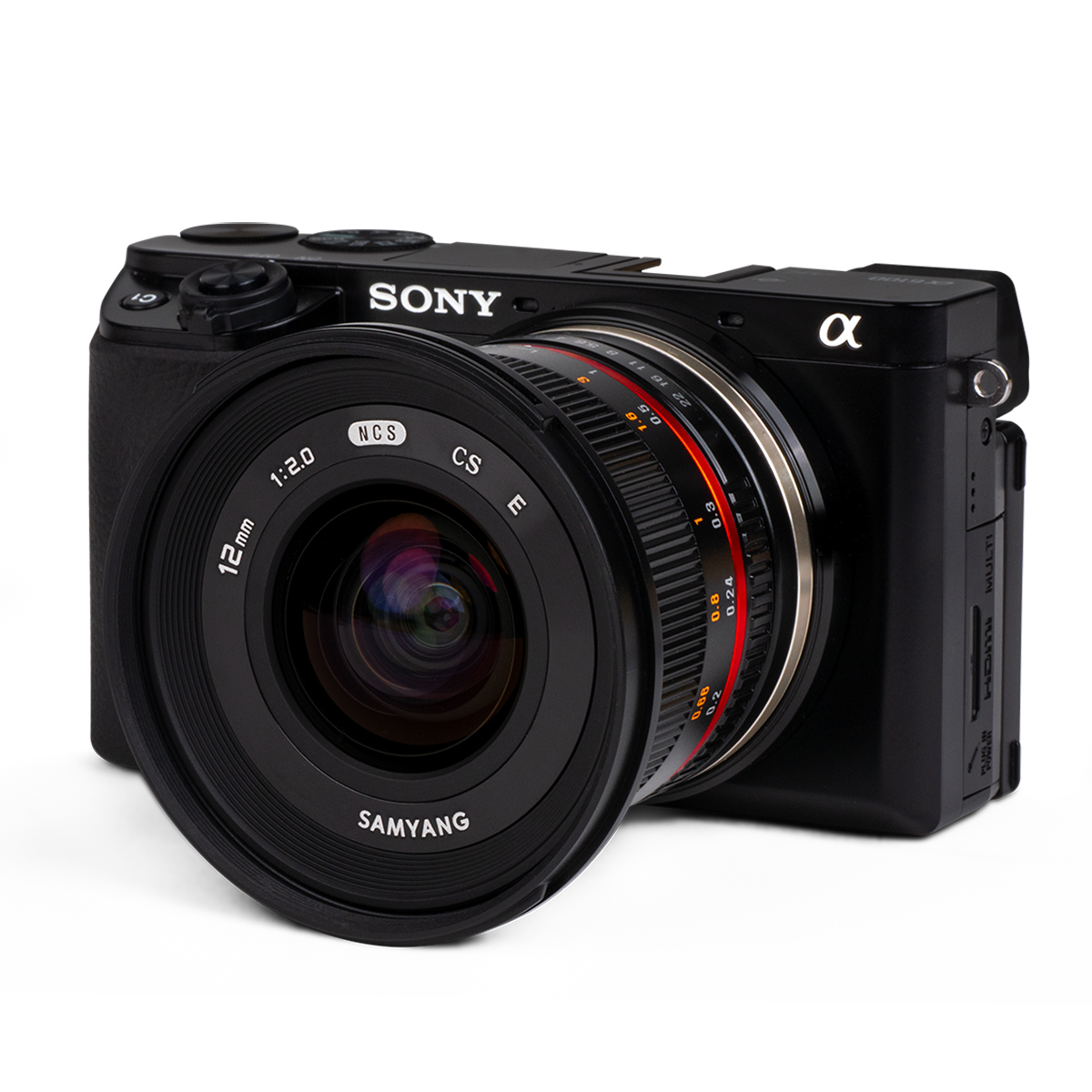

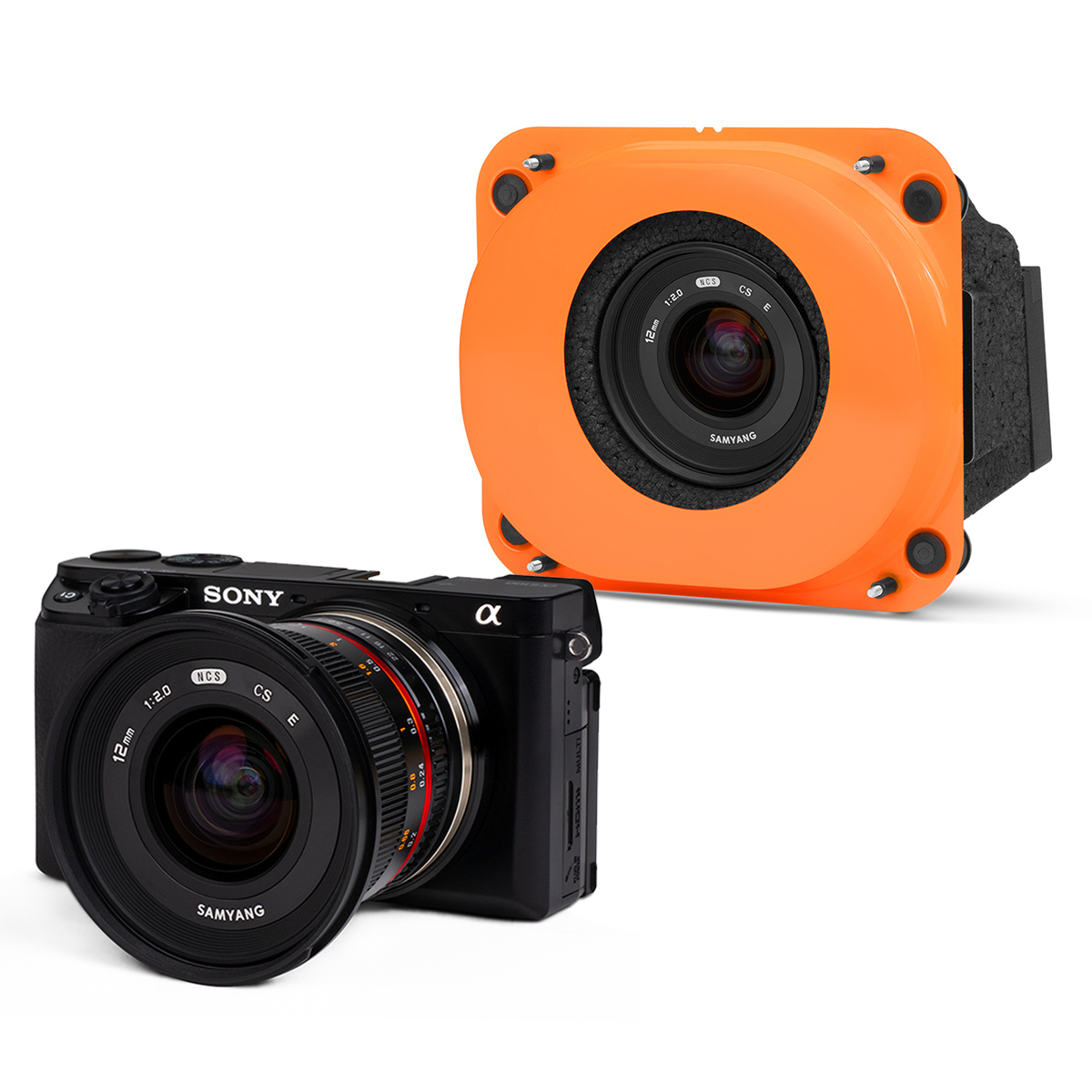

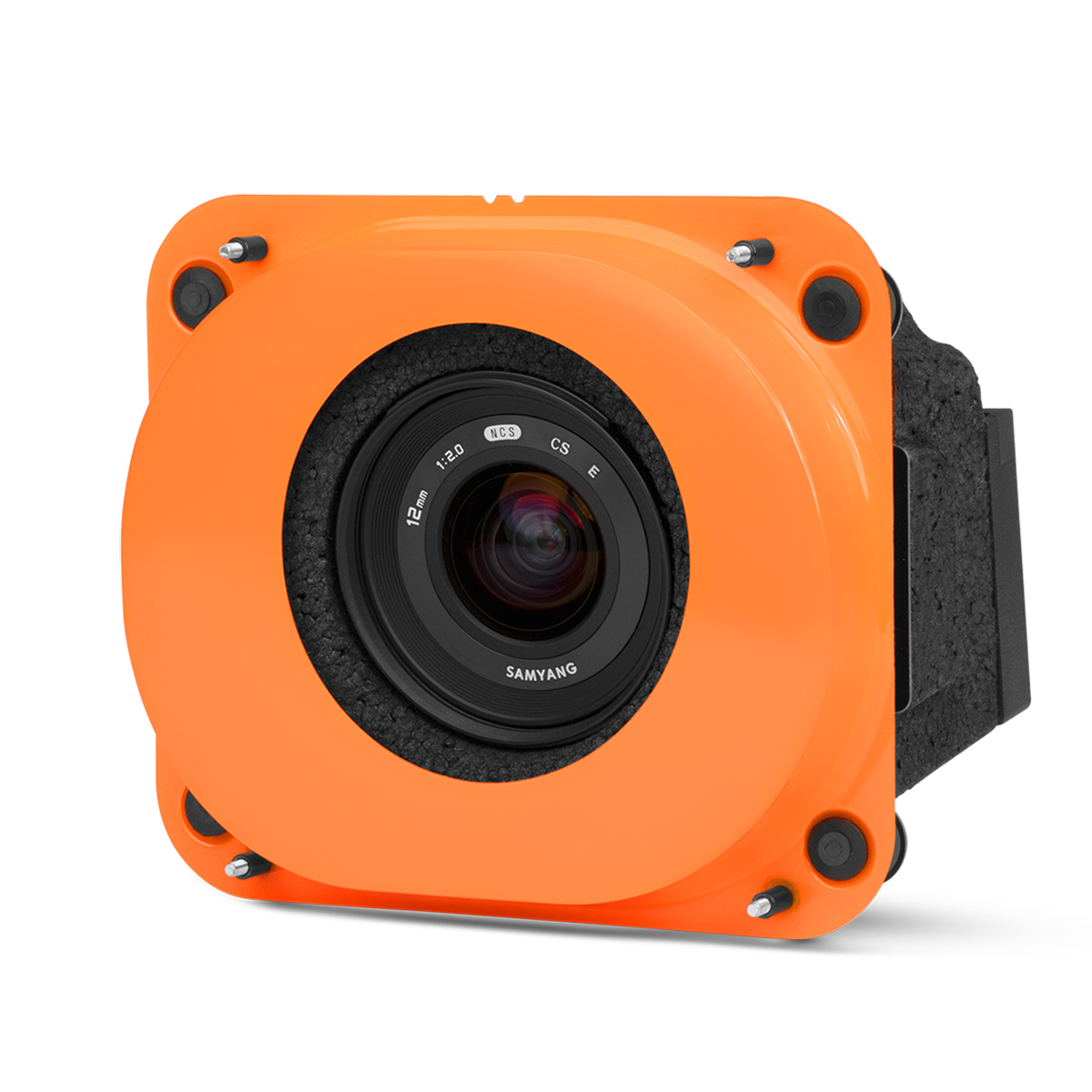

The Oblique Sony Alpha a6100 Camera Payload Kit for the WingtraOne Drone, available through Seiler GeoDrones, is a state-of-the-art solution for capturing intricate details of vertical structures and creating high-resolution 3D meshes with centimeter-level absolute accuracy. Featuring the Sony a6100 camera paired with a 12mm wide-angle lens, this kit is perfectly tailored for the WingtraOne’s oblique imaging capabilities, making it ideal for capturing complex urban landscapes, buildings, and other vertical features.

The camera’s low-oblique configuration provides a wide field of view, capturing comprehensive details on both the front and sides of structures, which is crucial for creating accurate 3D models. This setup ensures sufficient detail on vertical planes, allowing for the creation of realistic digital twins that represent the true geometry of buildings and other vertical structures.

With PPK geotagging precision, VTOL capabilities, and the sophisticated WingtraPilot flight planning, this payload kit allows users to achieve efficiency and remarkable accuracy in their operations. The single-pass mapping capability eliminates the need for complex cross-grid planning, enabling users to cover up to 180 hectares (445 acres) in a single flight, increasing field productivity.

The kit provides impressive accuracy, with horizontal absolute accuracy down to 0.8 inches per pixel and vertical absolute accuracy down to 4 cm per pixel, ensuring that every detail is captured with precision. Built for high durability, the payload is designed for easy camera swaps in the field, allowing users to quickly switch between high-resolution RGB imaging and multispectral data collection, providing flexibility for various mapping needs.

Additionally, the WingtraOne GEN II’s smooth VTOL landing capability ensures that the camera equipment is protected from the shock of landing, maintaining the longevity of the payload even in challenging environments.

In summary, the Oblique Sony Alpha a6100 Camera Payload Kit for the WingtraOne Drone is an excellent choice for professionals who need to capture detailed 3D models of vertical structures and large-scale mapping projects with the efficiency, flexibility, and accuracy that only Wingtra technology can offer.

Wingtra Sony a6100 Payload Kit Features:

• Sensor Type: 24 MP APS-C
• Lowest GSD: 1.6 cm/px
• Coverage at 120m: 180 ha at 3.9cm/px GSD
• Absolute Horizontal Accuracy: Down to 2 cm (without GCPs)
• Horizontal Field of View: 90°
• Vertical Field of View: 66° (tilted to the front)
