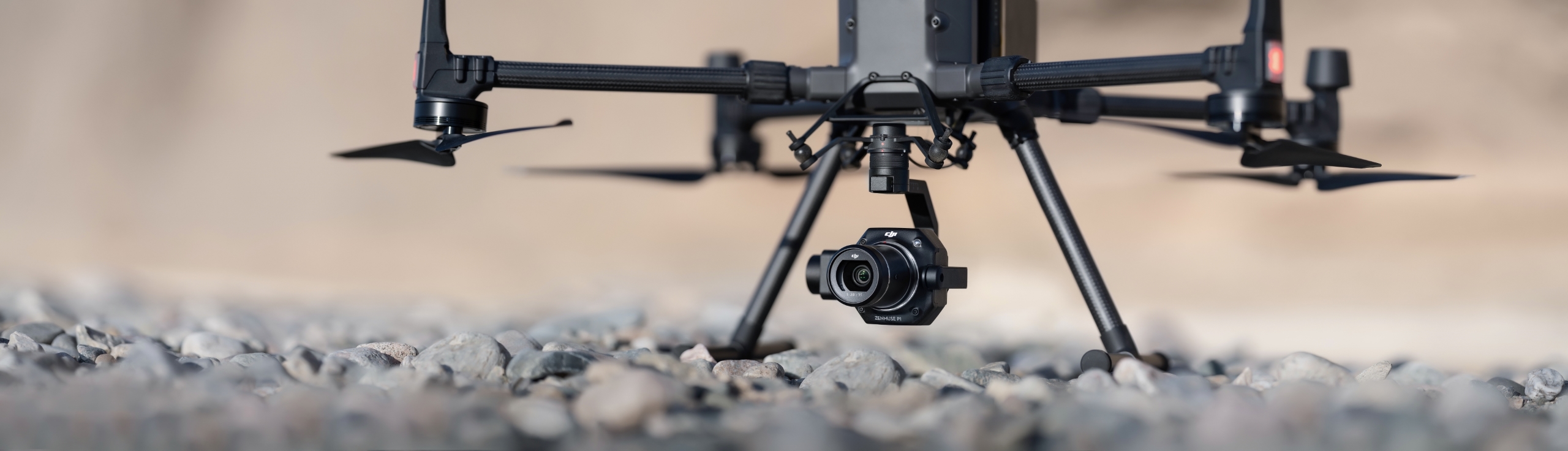

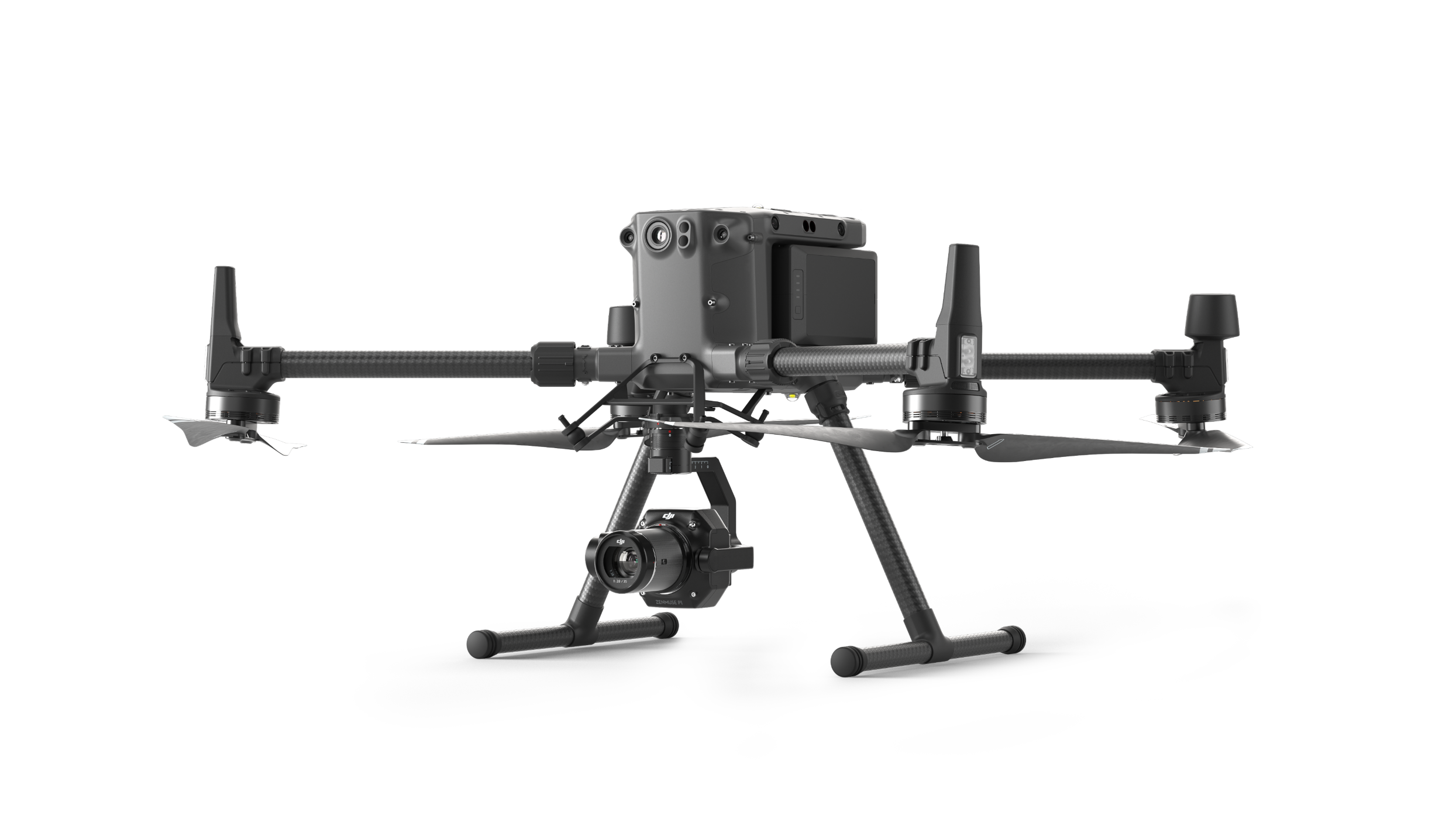

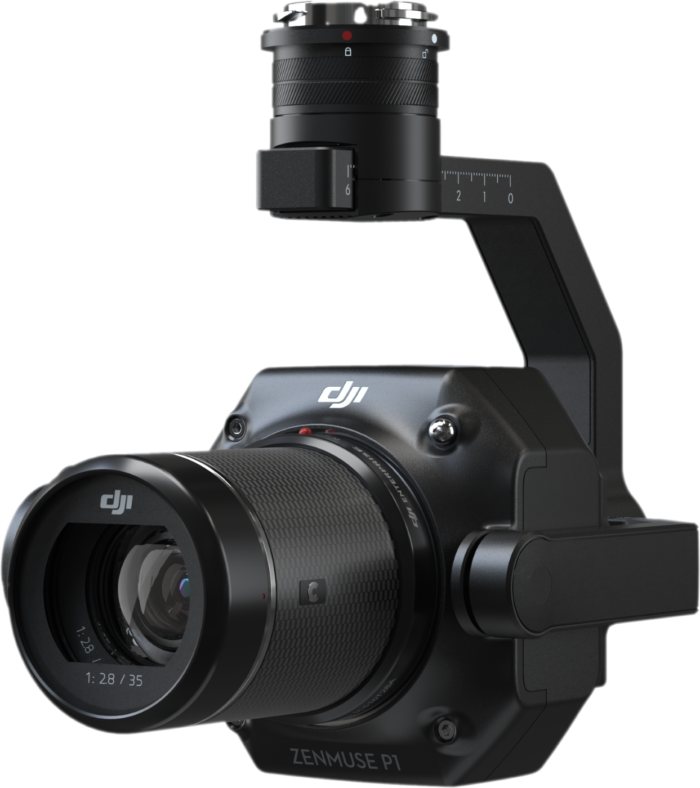

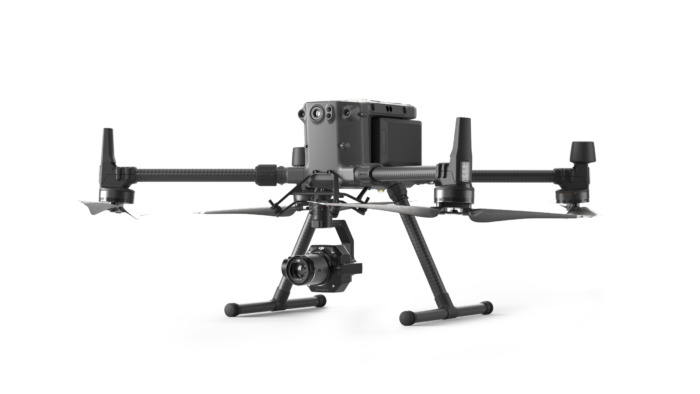

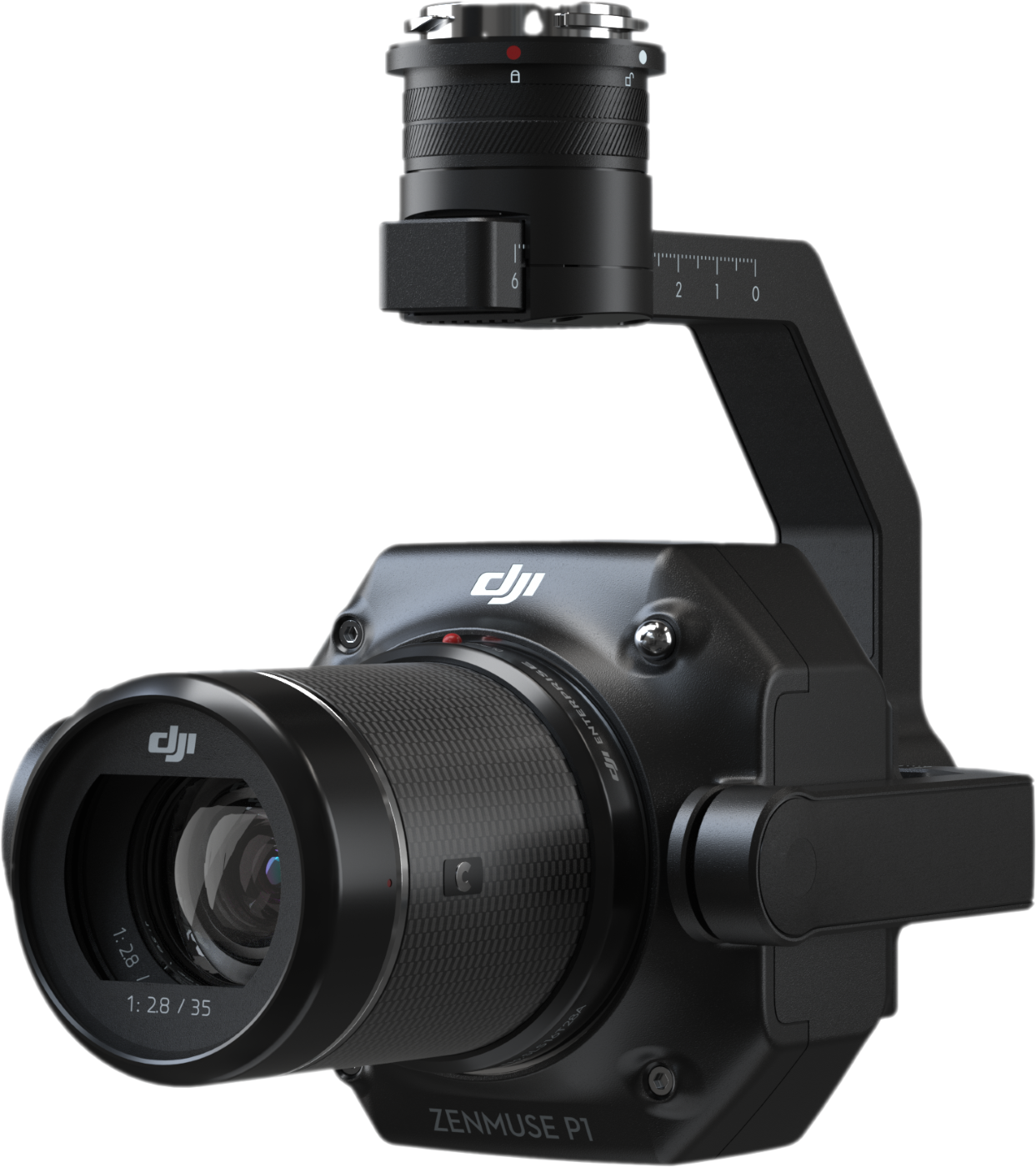

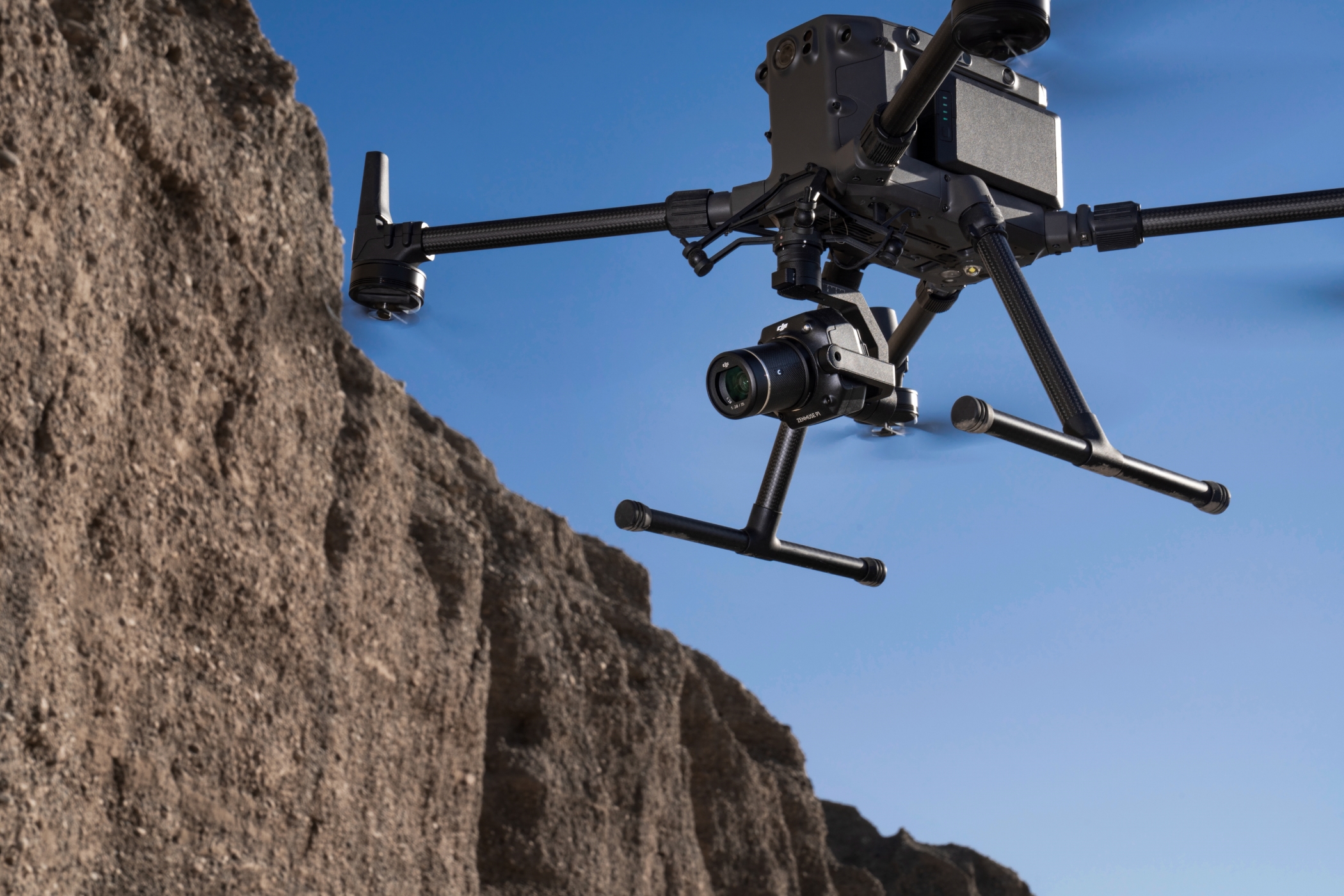

DJI Zenmuse P1 Camera

Description

The New Benchmark for Aerial Surveying

Features

Accuracy without GCPs

3 cm horizontally / 5 cm vertically ^[1]

High Efficiency

3 km2 covered in a single flight ^[2]

45 MP Full-frame Sensor

3-axis Stabilized Gimbal

Smart Oblique Capture

Global Mechanical Shutter ^[3]

Shutter Speed 1/2000 Seconds

TimeSync 2.0

synchronization at the microsecond level

Extraordinary Efficiency

The P1 includes a full-frame, low-noise high-sensitivity sensor that can take a photo every 0.7 s during the flight, and covering 3 km2 ^[2] in a single flight.

Remarkable Accuracy

Equipped with a global mechanical shutter and the all-new TimeSync 2.0 system, which synchronizes time across modules at the microsecond level, the Zenmuse P1 lets users capture centimeter-accurate data combined with the real-time position and orientation compensation technology.

Robust Versatility

Create 2D, 3D, and detailed models thanks to the integrated 3-axis gimbal that can be outfitted with 24/35/50mm lenses and the Smart Oblique Capture feature.

Efficiency to Cover It All

Full-frame Camera

• 45MP Full-frame Sensor
• 4.4μm Pixel Size
• Low-noise, high sensitivity imaging extends daily operational time
• Take a photo every 0.7 s during the flight
• TimeSync 2.0 aligns the camera, flight controller, RTK module, and gimbal at the microsecond level

Smart Oblique Capture

Cover 7.5 km2 ^[4] in a single workday with the P1. Elevate the efficiency of your oblique photography mission using Smart Oblique Capture, where the gimbal automatically rotates to take photos at the different angles needed. Only photos essential to the reconstruction will be taken at the edge of the flight area, increasing the efficiency of post processing by 20% ^[5] to 50% ^[6].

Fieldwork Report ^[7]

Verify data quality immediately post-flight by checking the position data and number of the images acquired, as well as RTK status and positioning accuracy.

Use Cases

Topographic Mapping

Capture data that meet the 1:500 scale accuracy requirements without GCPs.

Cadastral Surveying

Quickly generate centimeter-level accurate 3D reality models.

AEC and Surveying

Manage the full project lifecycle with 2D and 3D drone data.

Natural Resource Management

Measure, classify, or determine the ownership of water bodies and forests.

Geological Investigation

Safely gather millimeter-level accurate aerial data of geological hazard sites.

Disaster Site Modeling

Gain real-time overviews of vast disaster-struck areas to help teams make critical decisions.

[1] Using Mapping Mission at a GSD of 3 cm, with a 75% front overlap rate and a 55% side overlap rate.
[2] At a GSD of 3 cm, with a 75% front overlap rate and a 55% side overlap rate.
[3] The global shutter is achieved with a central leaf shutter.
[4] Using Smart Oblique Capture at a GSD of 3 cm, with an 80% front overlap rate and a 60% side overlap rate.
[5] Area mapped: 1.5 km2, flight altitude: 200 m
[6] Area mapped: 0.5 km2, flight altitude: 200 m
[7] Support coming soon.
