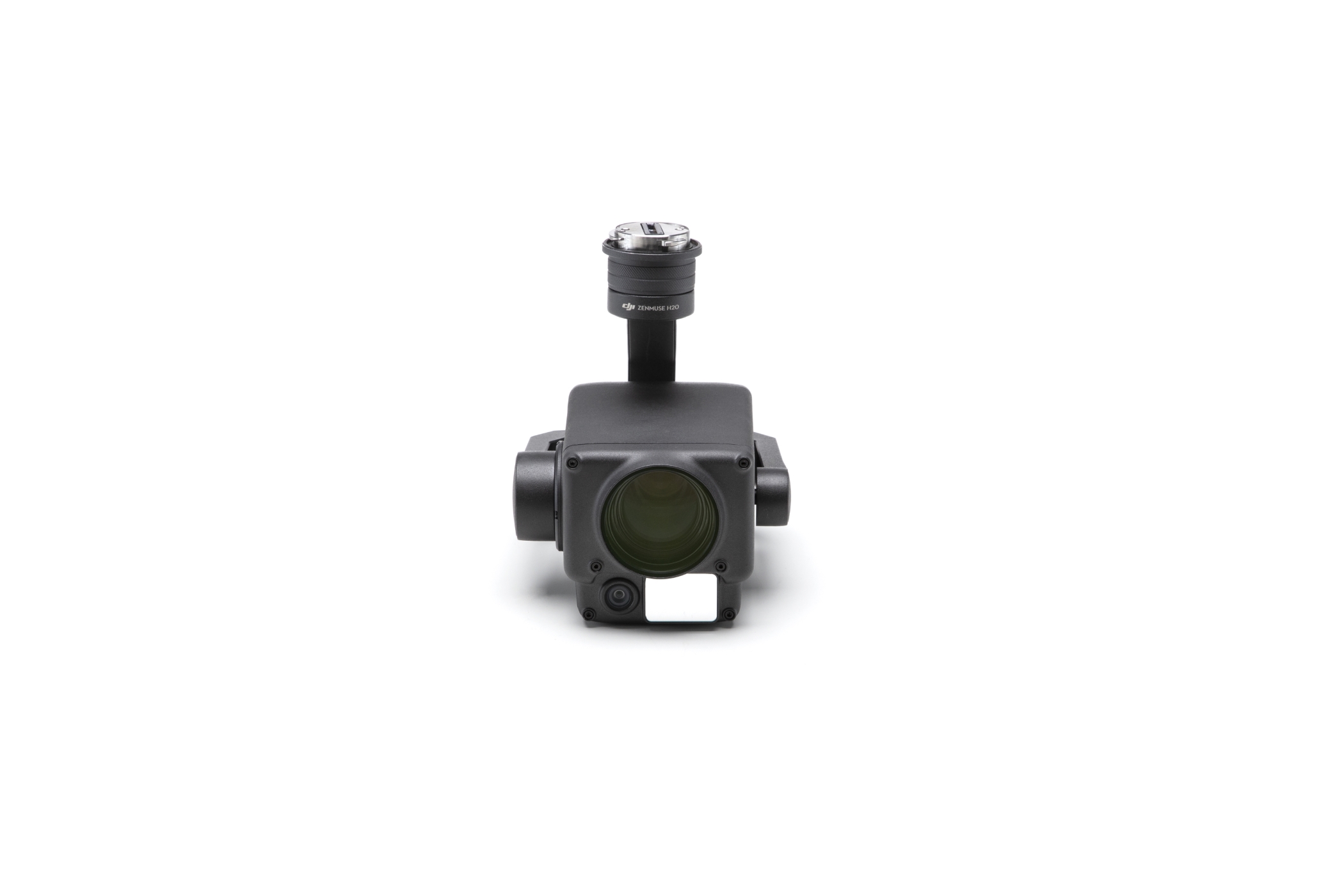

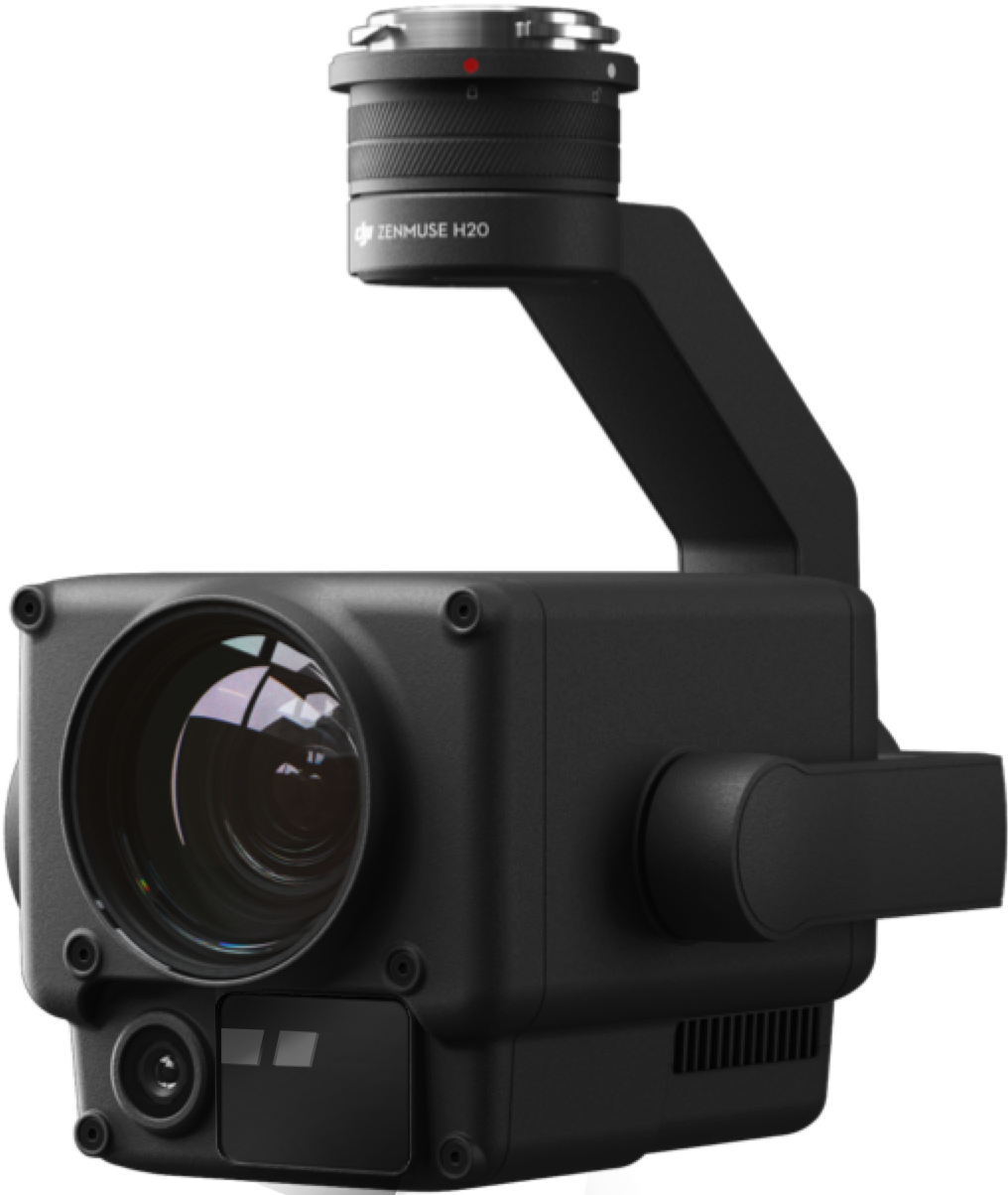

DJI Zenmuse H20

Description

H For Hybrid

Triple-Sensor Solution

1. 20 MP 23x Hybrid Optical Zoom Camera
2. 12 MP 82.9 DFOV Wide Angle Camera
3. 1200 m Laser Range Finder

Features

• IP44 Rating
• -20°C to 50°C Operating Temperature
• Active Image Stabilization and EIS
• Night Scene Mode

Seamless User Interface

A new integrated user interface lets you quickly switch between wide, zoom, and preview the zoom FOV while in wide or thermal camera view.

AI Spot-Check

Automate routine inspections and capture consistent results every time. Onboard AI recognizes the pre-marked subject of interest in subsequent automated missions to ensure consistent framing.

High-Res Grid Photo

Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.

PinPoint

A quick tap marks an object in view, advanced sensor fusion algorithms immediately deliver its coordinates.

Smart Track

Identify and follow moving subjects like people, vehicles, and boats with the auto-zoom function, while continuously acquiring the subject’s dynamic location.

Use Cases

• Firefighting – Fight fires and save lives without endangering personnel.
• Search & Rescue – Act quickly to locate missing people and better plan rescue missions.
• Law Enforcement – Quickly assess a situation and plan accordingly while improving officer and bystander safety.
• Powerline Inspection – Easily visualize extensive power line networks in remote areas.
• Oil & Gas – Conduct inspections of pipelines, well sites, and more while keeping workers away from risky areas.

All The Sensors You Need – In One

Capture everything. Up close or from a distance. In true living color or thermal. An integrated laser rangefinder (LRF) measures the distance to an object at up to 1200 m away. A powerful, integrated payload that unleashes advanced intelligent capabilities for DJI’s industrial drone platforms.

Powerful Zoom Camera

• 23x Hybrid Optical Zoom, 200x Max Zoom
• 20 MP 1/1.7″ CMOS Sensor
• Video Resolution: 4K/30fps

Wide Camera

• Equivalent Focal Length: 24mm, DFOV: 82.9°
• 12 MP 1/2.3″ CMOS Sensor

Laser Rangefinder

• Range: 3 m – 1200 m
• Accuracy: ± (0.2 m + Dx0.15%)
